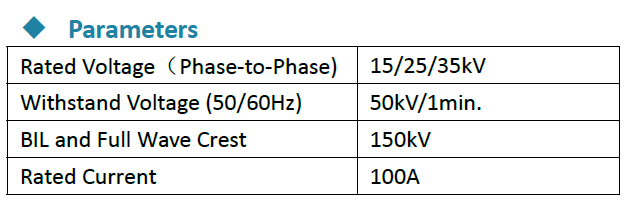

15/25/35kV 100A Dual Voltage Switch

Views: 0
Date: 2024-05-20 09:23:19
Category: IEEE Accessories

The dual voltage switch is used to change the connection of de-energized transformer windings between series and parallel to provide different common transformer voltage ratios. They also make it possible to stock one transformer with voltage conversion capability.

Externally operable switches eliminate many of the hazards associated with manual internal tap changing of distribution transformers because line crews need not be exposed to high-voltage conductors and hot transformer fluids. They also eliminate the need to dismount pole-type transformers for voltage adjustment and prevent exposure of the transformer tank interiors to contamination.
