15kV 200A Loadbreak Bushing Insert

The Bushing Insert threads onto a standard 200A bushing well. The combination of the bushing well and bushing insert perform the same function as a one piece integral loadbreak bushing, while providing the flexibility to change the bushing insert in the field, without taking the transformer or other apparatus out of service. The bushing insert and loadbreak elbows are the primary components in all ANSI/IEEE loadbreak connections.

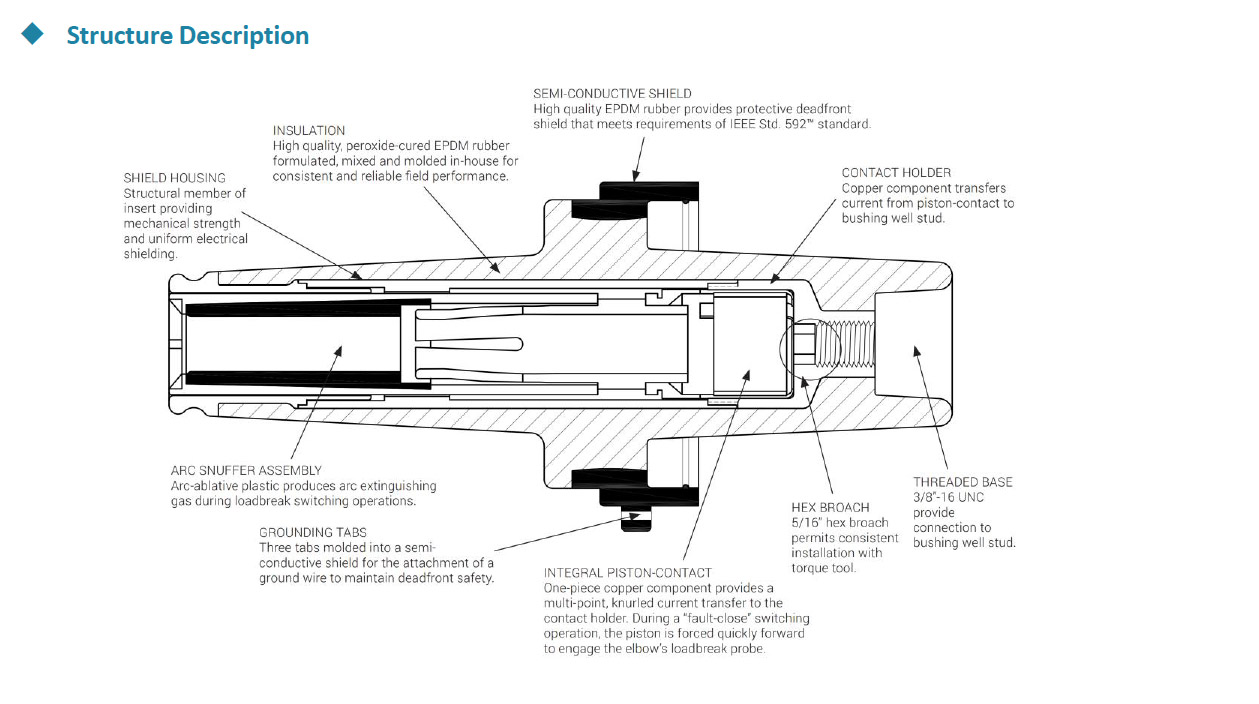

The Bushing Insert incorporates an all copper current path. This provides reliable and consistent performance under all conditions.

The Bushing Insert meets all the requirements of IEEE Standard 386, and is fully interchangeable with other products have the same interface. When installed with mating components, the bushing insert provides a fully shielded and fully submersible connection for loadbreak applications.
