Transformer Oil Temperature Gauge

Views: 0
Date: 2024-05-20 14:29:11
Category: IEEE Accessories

The transformer oil temperature gauge is suitable for the instrument installed on the side wall of the transformer for temperature measurement and indication. The temperature measurement range is 0~120°C.

Material & Parameters

- Case: 304 stainless steel, polish, non-vent.

- Pointer: aluminium,white painting, non-adjustable.

- Lens: polymethyl methacrylate.

- Accuracy: 3%

- Connection: Cr stainless steel M27 X 2.

- Tube & Socket & Movement: 304 stainless steel.

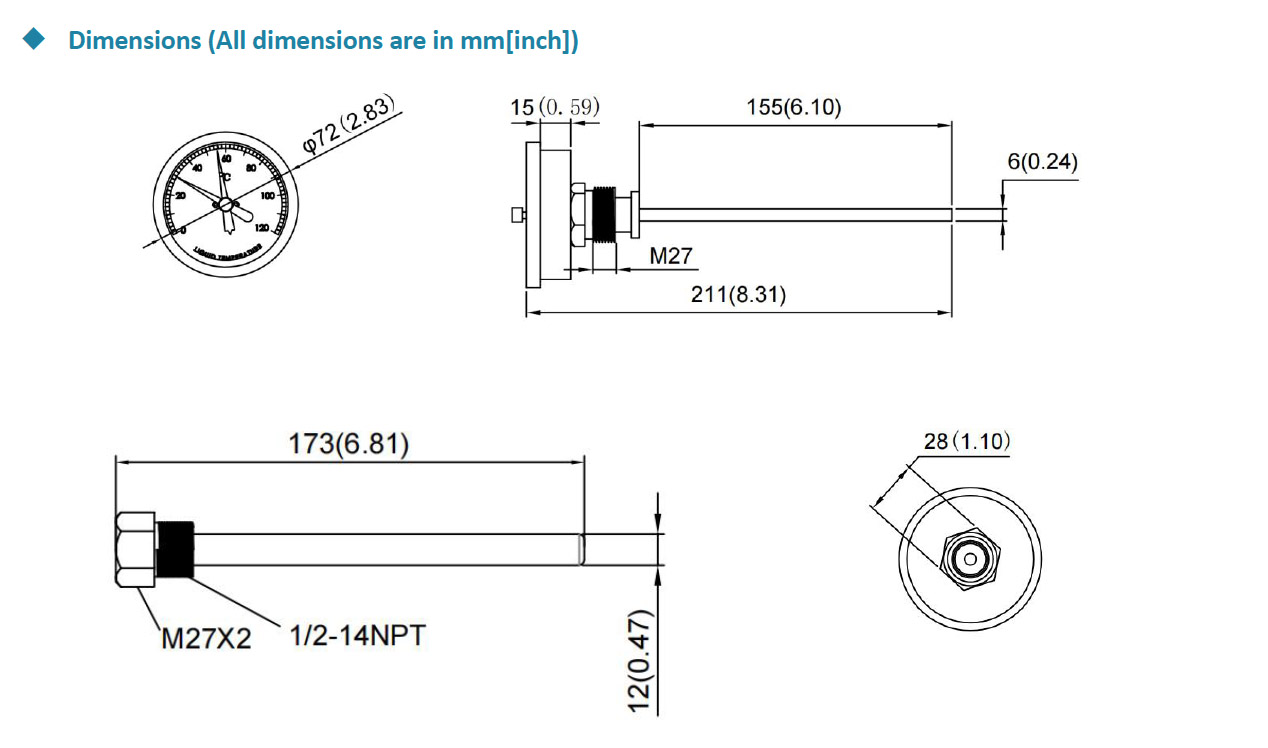

- Temperature gauge well: 304 stainless steel, polish, internal thread, M27 X 2, external thread, M27 X 2, 1/2-14, diameter 12mm, length 173mm.
