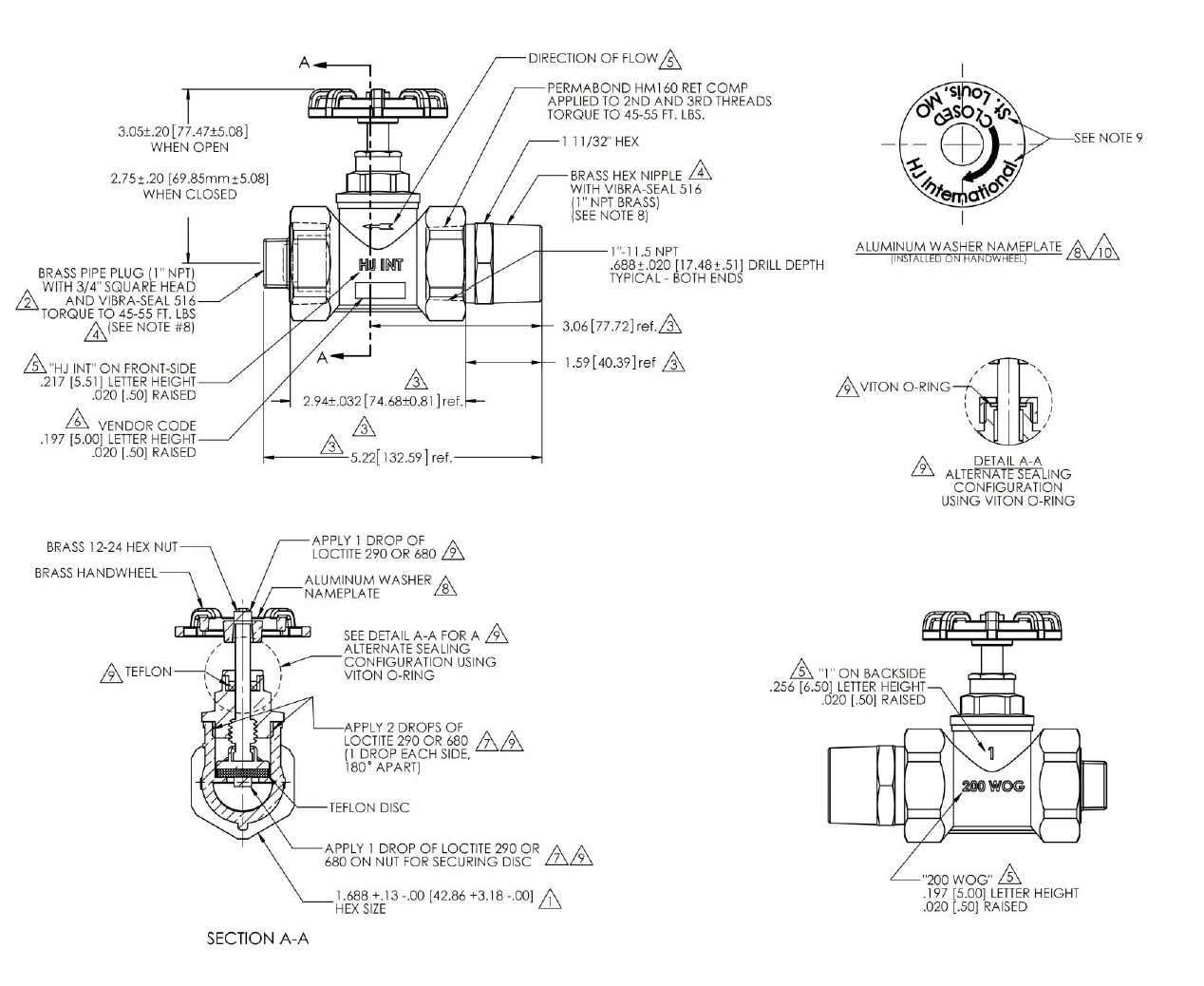

1" Globe Valve With Pipe Plug & Nipple
Note
1. ELECTRICAL APPARATUS VALVE.
2. RATING: 200 LBS. WOG (WATER-OIL-GAS)
3. VALVE BODY: C 377 or HPb58-3
4. TEFLON DISC
5. GASKETS: VITON
6. MUST BE SUPPLIED IN THE CLOSED POSITION.
7. PACKAGING REQUIREMENTS:
- 12 VALVES PER BOX8. REFER TO DV1000-002-ILL FOR VIBRA-SEAL
APPLICATION AND DIRECTION OF FLOW.
9. ALUMINUM WASHER NAMEPLATE SPECIFICATIONS:
- THE WASHER WILL BE GREEN COLOR: PANTONE 149C
OR EQUIVALENT.
- "HJ INTERNATIONAL", "ST. LOUIS, MO", &
"CLOSED" .098 [2.50] MIN. TEXT HEIGHT.
- "CLOSED" ARROW TO POINT IN A CLOCKWISE
DIRECTION.
