HXGN17-12 BOX TYPE FIXED METALENCLOSED SWITCHGEAR
OVERVIEW
HXGN17-12 box type fixed metal enclosed switchgear (referred to as ring network cabinet) is an AC high-voltage complete equipment device with arated voltage of 12kV and a rated frequency of 50Hz. t is mainly used for aterating curent ring networks, terminal distribution networks, and industrialelectrical equipment, as wel as for reciving, distributing electrical energy, and protecting. t is also suitable for instalation in boxtype substations.Comply with GB3906 "3.6-40.5 AC Metal Enclosed Switchgear and Control Equipment" and comply with the reguirements of international standard 1EC298'AC Metal Enclosed Switchgear and Control Equipment". And it has the "five prevention" interlocking function.

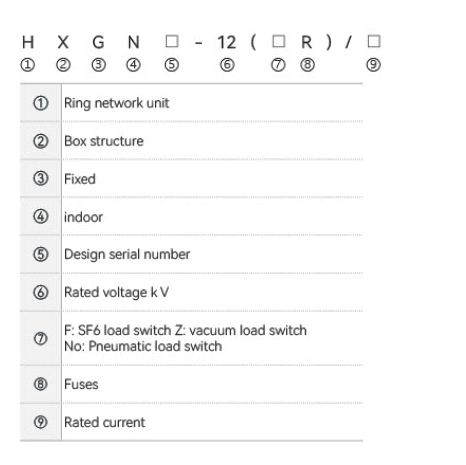

MODEL AND MEANING
NORMAL CONDITION
Surrounding air temperature: -15 ℃~+40 ℃
Atitude: 1000m and below
Earthquake intensity: not exceeding 8 degrees;
Places without obvious pollution such as corrosive or combustible gases.
Humidity conditions: The daily average value shall not exceed 95%, and the daily average vale of water vapor pressure shall not exceed 2.2kPa; Themonthly average value shall not exceed 90%, and the monthly average value of water vapor pressure shall not exceed 1 8kPa
Note: When the above normal usage conditions are exceeded, users can negotiate with our company.

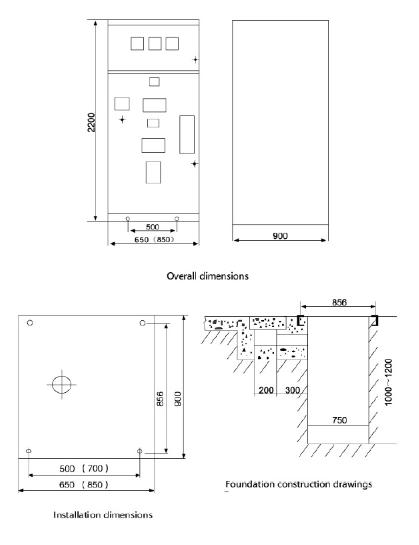

DRAWING
