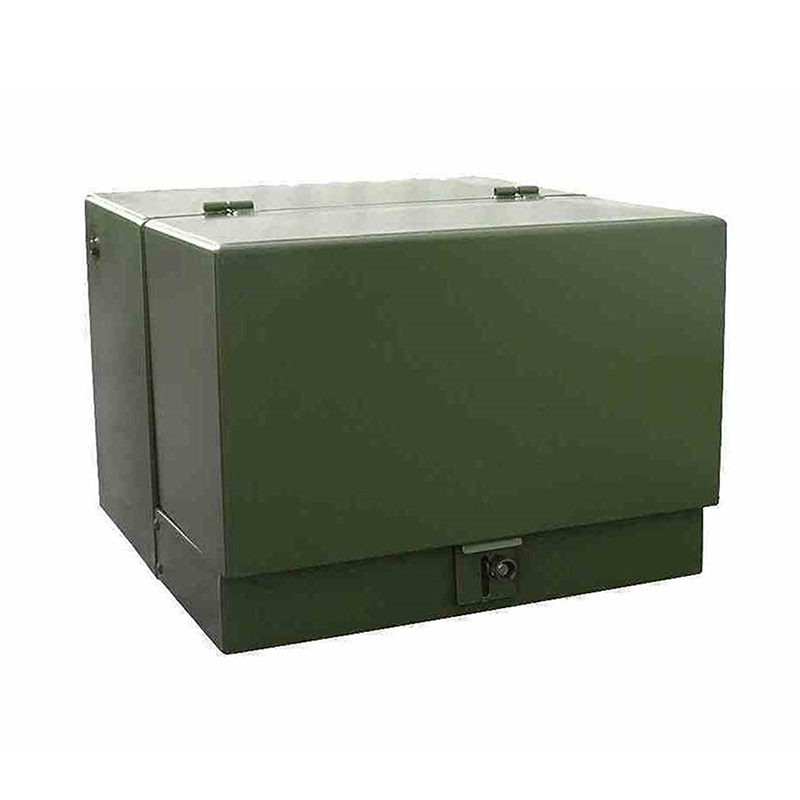

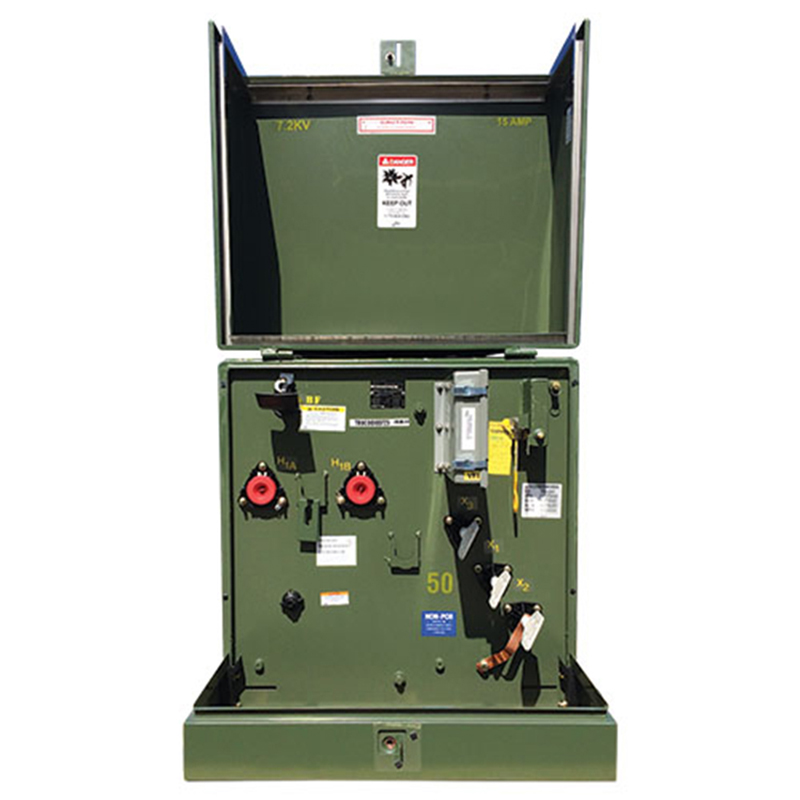

The single phase pad mounted transformer is designed to improve performance in terms of KVA rating, compact dimensions, lighter weight, safety, and sustainability. No distribution room, can be directly placed in the indoor or outdoor, can also be placed in the streets and the greenbelt and reliably ensure personal safety, both power supply facilities, but also decorate the environment. It is low-profile, compartment-type transformer, which supplies suitable for mounting outdoors on pads without additional protective enclosures, and meet the following standard: IEC60076, ANSI/IEEEC57.12.00, C57.12.38, C57.12.90 .

Use environment：

1. The altitude does not exceed 1500m

2. Use environment temperature +40℃—-20℃

3. The annual average humidity does not exceed 90%

4. Both indoor and outdoor

Product advantages：

1.Space-Saving: Single phase pad mounted transformers are designed to be compact and require very little space. This makes them an ideal choice for areas where space is limited, such as urban areas or densely populated suburbs.

2.Easy Installation: These transformers are easy to install, and they can be installed above or below ground level, depending on your needs. They are designed to be self-contained, so they require very little additional equipment or infrastructure to operate.

3.Low Maintenance: Single phase pad mounted transformers are designed to be low-maintenance. They require very little attention once they are installed, and they are designed to be highly reliable.

4.Efficient: These transformers are designed to be highly efficient, with very low losses. This means that they are able to deliver power to the grid with minimal waste or inefficiency.

5.Customizable: Single phase pad mounted transformers are highly customizable, and they can be designed to meet your specific power distribution needs. They are available in a range of sizes and configurations, so you can choose the transformer that best fits your requirements.

6.Cost-Effective: Single phase pad mounted transformers are a cost-effective option for power distribution. They require minimal maintenance and have a long service life, which can help to keep your operational costs low over time.
