NEW ENERGY INTEGRATED PHOTOVOLTAIC PREFABRICATED CABIN
![NEW ENERGY INTEGRATED PHOTOVOLTAIC PREFABRICATED CABIN](https://www.jsywtransformer.com/uploadfile/202405/a8fda4a2b40396a.jpg)
OVERVIEW
YZC New Energy Integrated Photovoltaic Prefabricated Cabin, European style Integrated Machine.
The lavout of the European al-in-one machine is similar to that of conventional European transformers, The entire machine casing is made of a container*asing, incuding a transtormer room, high-voltage room, communicalion power cabinet room, and inverter room. ach room is separated by a partitionor corrugated board, and the inverter and high and low voltage rooms are distibuted on both sides of the transformer room, with an overall heringbonestructure. The inverter is aranged in a miror image, with a lower inlet welhead set between the inverter pasages, and the inverter side outet connectedto the low-voltage bushing on one side of the transformer through copper bars and soft connections. The transformer is usualy a dry type transformer,equipped with a vacuum load switch and fuse combination appliance. The vacuum lad switch and fuse combination appliance is connected to thetransformer room through high-voltage cables, and the communication power cabinet is simiar to the Ameican integrated machine. The heat disipationmethod of transformers usually adopts natural air cooling or forced air cooling.
The containerized shellis equiped with ventilation louvers, fan outlets, and fans for internal and external air circulation of the entire substation. Theinverter room is equipped with fire emergency lights, fire detectors, explosion-proof lighting, and fire extinguishers.
NORMAL CONDITION
Altitude: ≤3000 meters;
Surrounding environment temperature: -45°C~+45°C ;
Environmental humidity. The daily average relative humidity shallnot exceed 60%, and the monthly average relative humidity shall not exceed 90%.
Places without fire,explosion hazard, chemical corrosion, and severe vibration.

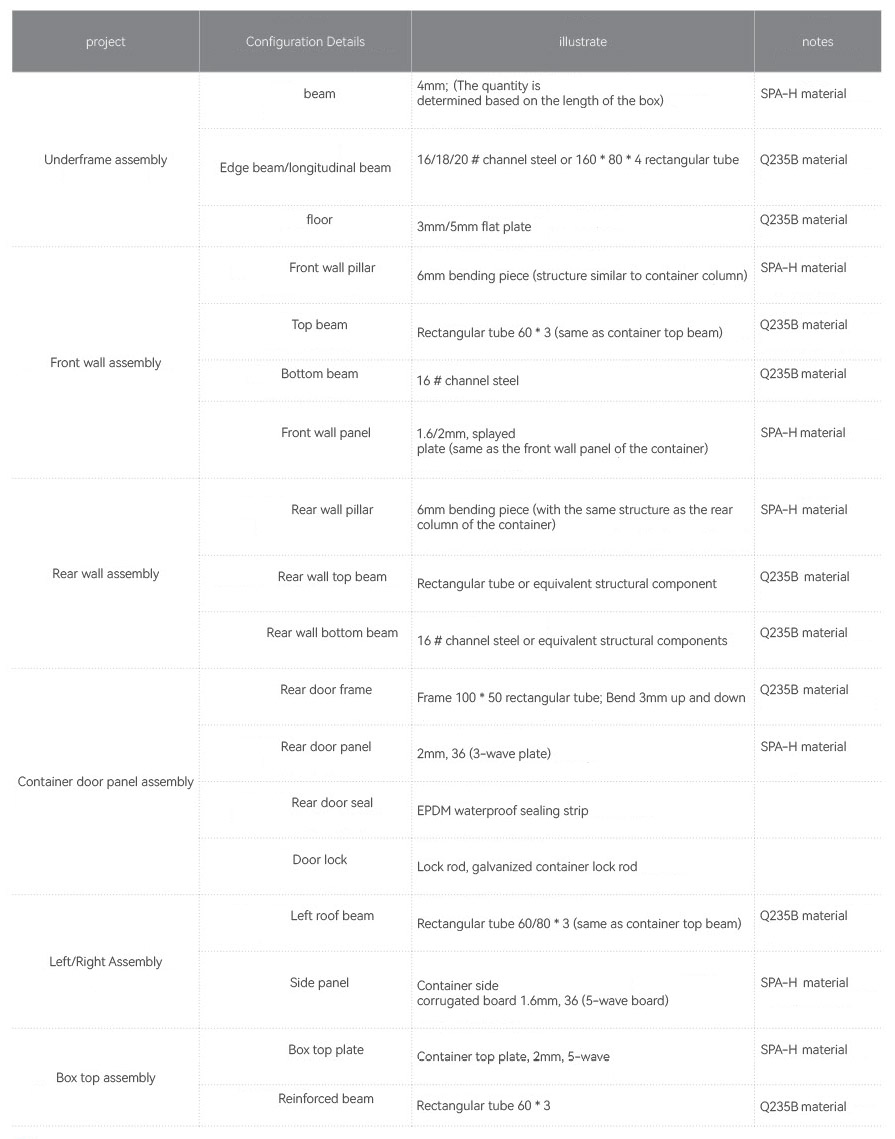

MAIN MATERIALS (TAKING THE 20FT STANDARD BOX AS AN EXAMPLE)
PRODUCT FEATURES
Highly integrated: pioneered a one-stop solution for DC input, inverte, and boost output; Unified installation and debugging in the factory, overallifting on site, one-stop completion of transportation, installation, and maintenance.Strong adaptability. Fully consider requirements such as ventilation and heat disipation, wind and sand resistance, rain and snow resistance, corosionesistance,and low temperature resistance Stable performance: high integration, few fault points, improving performance stabiity; Stable operation with an overload of 20%~50% (vegetable oil type).
High profitabilitly: reduce investment in AC cables, concentrate on optimizing electrical equipment such as circuit breakers, ightning protection, powelsupply, and monitoring, Small footprint and low construction difficulty.t can replace the traditional "MW room+photovoltaic box transformer" mode.
