GCK LOW VOLTAGE WITHDRAWABLE SWITCHGEAR

Views: 0
Date: 2024-05-27 11:08:42
Category: Low voltage switchgear series

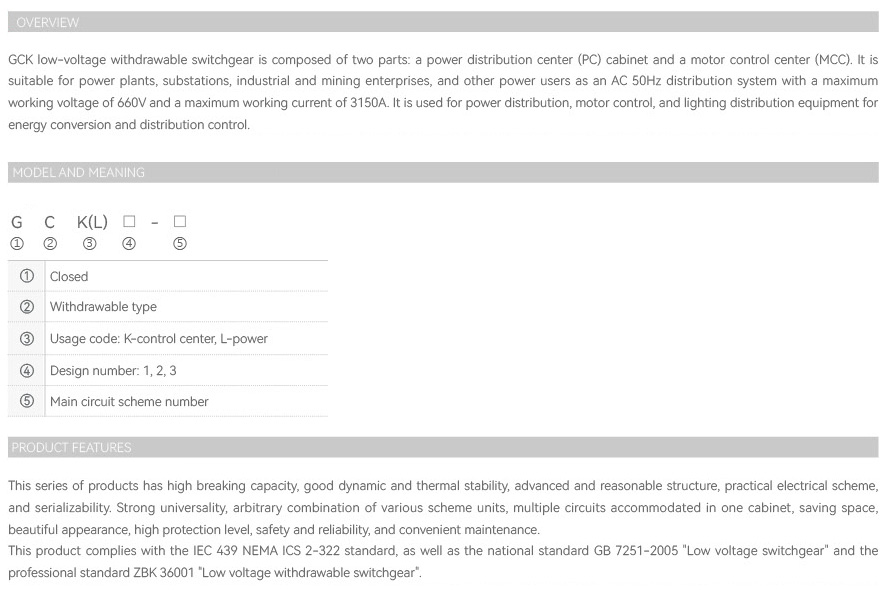

GCK LOW VOLTAGE WITHDRAWABLE SWITCHGEAR

Contact Us

aaaa

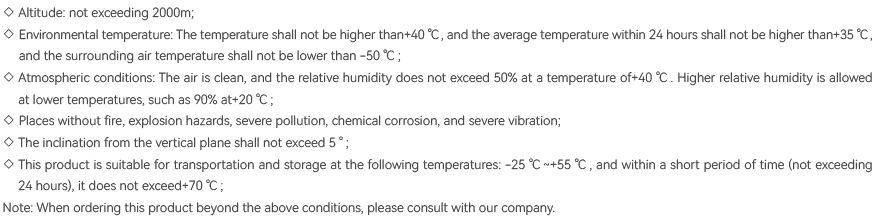

CONDITIONS OF USE

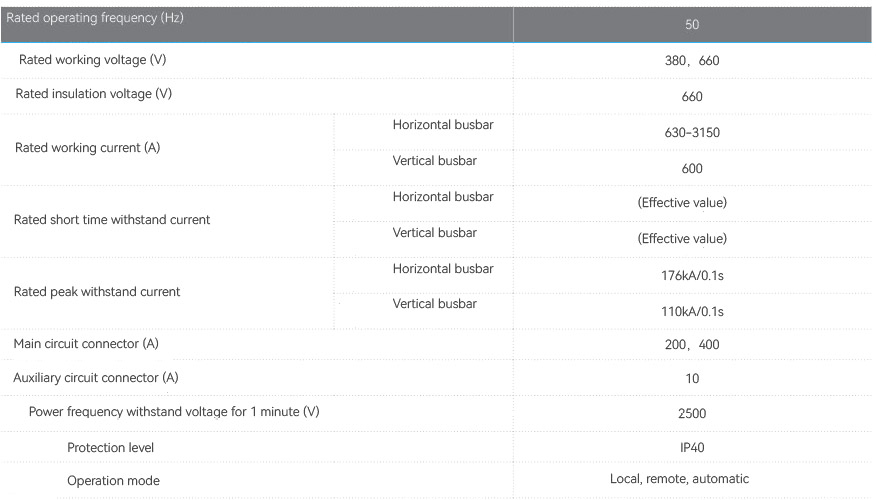

BASIC TECHNICA AMETERS

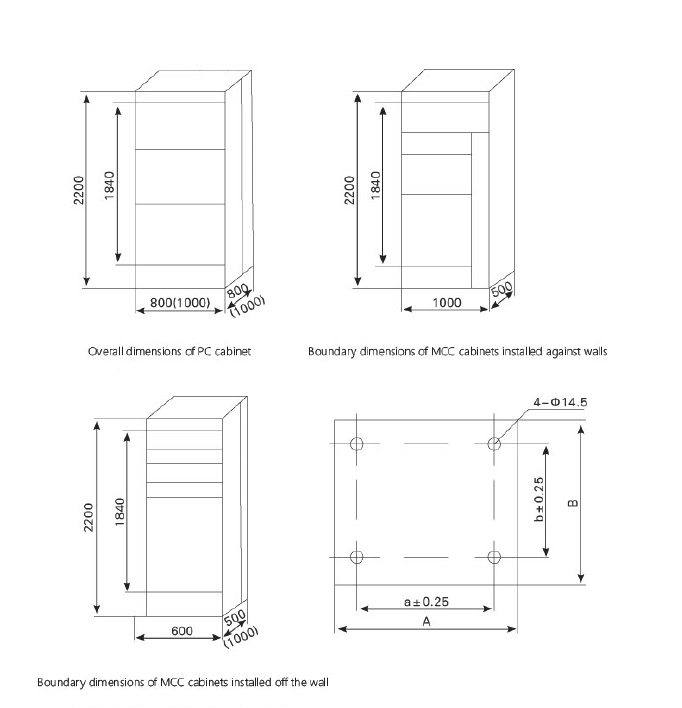

APPEARANCE AND INSTALLATION DIMENSIONS

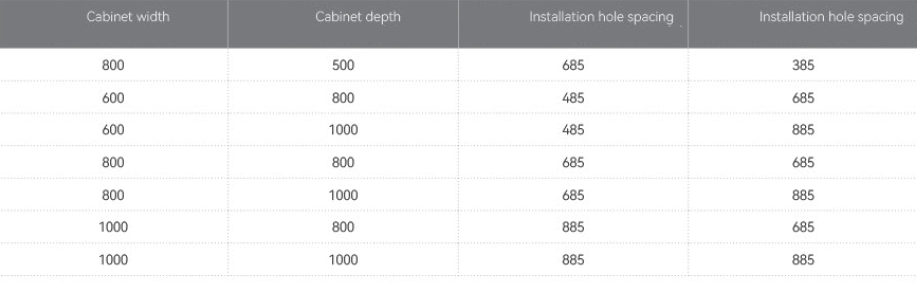

INSTALLATION DIMENSIONS AND HOLES

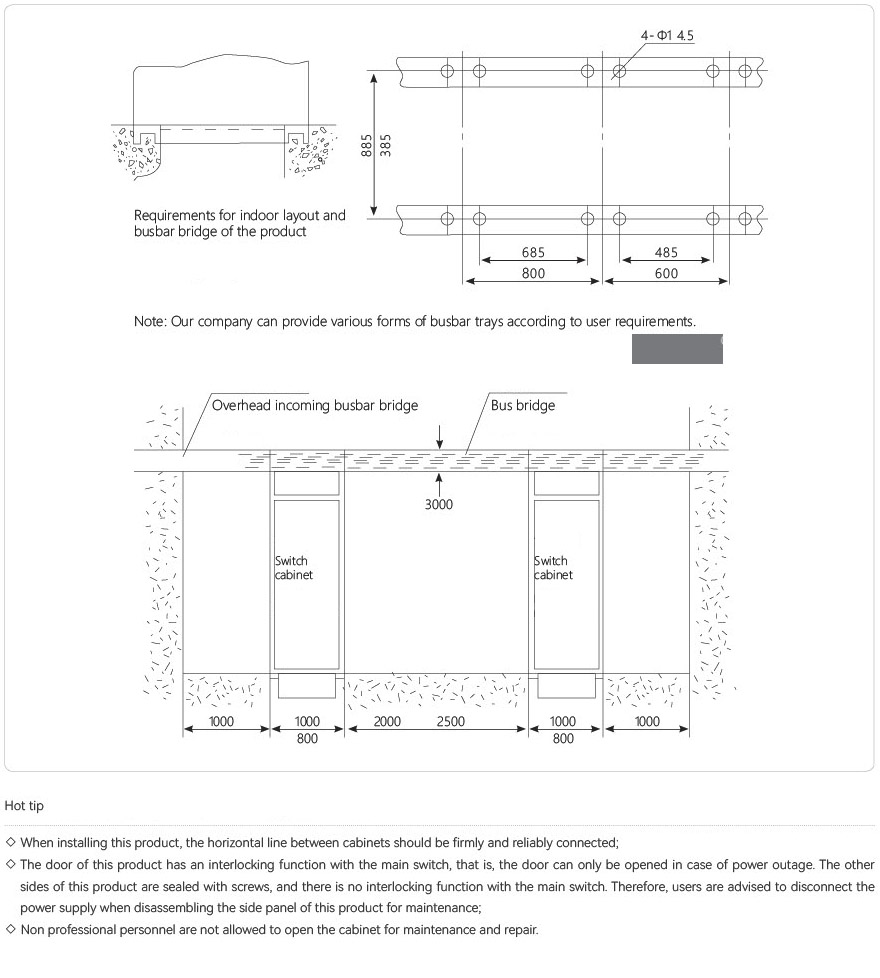

PRODUCTINSTALLATION DIAGRAM
